STANDARD SOLAR PANELS

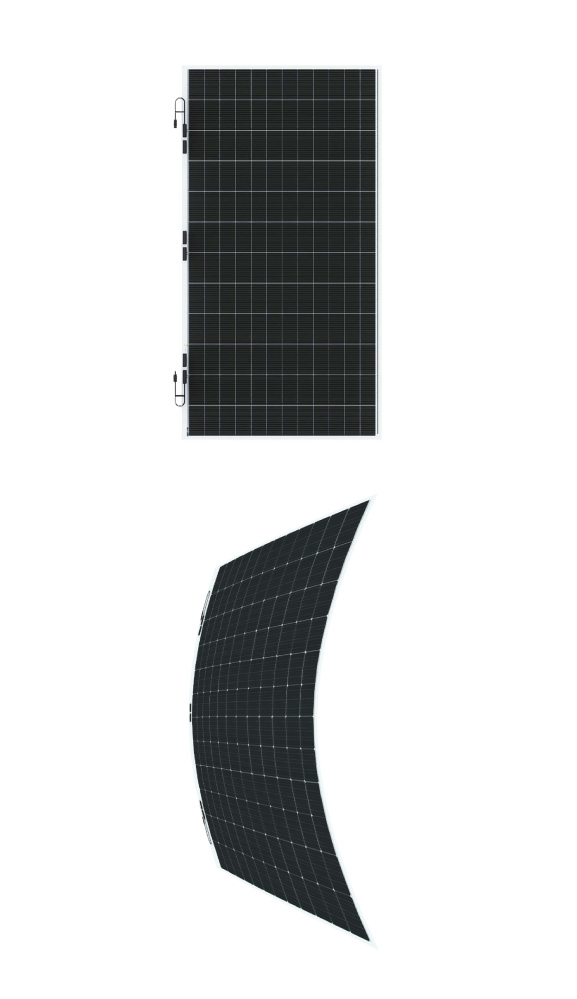

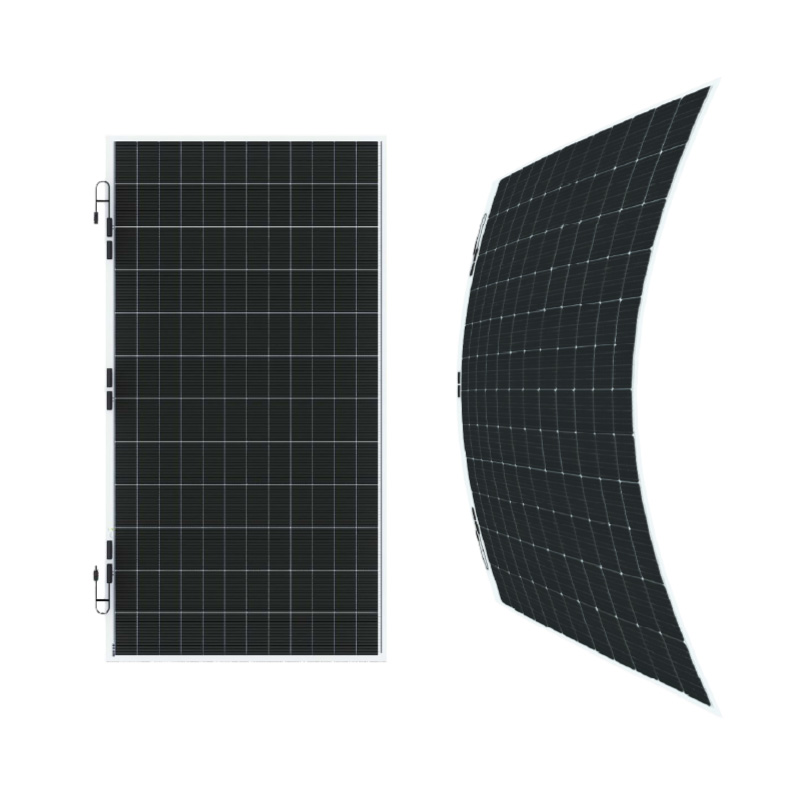

SEMI-FLEX TITANLINE MAX
Μ10 144 ΜΟNO CELL SOLAR PANELS
GSM-550W-HCSF GSM-555W-HCSF GSM-560W-HCSF
Say goodbye to traditional heavy solar panels. GermanSolar continues to innovate with the SEMI-FLEX TITANLINE MAX, specially designed for easy and versatile installation. Ultra-thin and lightweight, it easily conforms to curves and unique surfaces, making installation effortless and stress-free.
Features
Flexible radius < 0.3m
Lightweight2.9 Kg/m2
Hail test:IEC 61215-2:2021: $25mm, 23m/s
Withstands wind loads up to 2400 Pa /heavy snow loads up to 2400Pa
Sealing with PIB:Stronger moistance resistance, greater air impermeability to ex-tent module lifespan.
Fully automated production line with German quality engi-neering and design standards
EL tested and micro cracks inspected
12-year limited product warranty
25-year linear performance war-ranty
ISO 9001
ISO 14001
ISO 45001
ISO 26000
ISO 19600
ISO 14001
ISO 45001
ISO 26000
ISO 19600
IEC 61730-1
IEC 61730-2, IEC 61215-1,
IEC 61215-2 and IEC 61215-1-1
IEC 61730-2, IEC 61215-1,
IEC 61215-2 and IEC 61215-1-1
EN IEC 61730:
PHOTOVOLTAIC (PV) MODULE SAFETY QUALIFICATION
2014/35/EU:
THE LOW VOLTAGE DIRECTIVE
PHOTOVOLTAIC (PV) MODULE SAFETY QUALIFICATION
2014/35/EU:
THE LOW VOLTAGE DIRECTIVE
Semi-Flex Titanline Max Datasheet

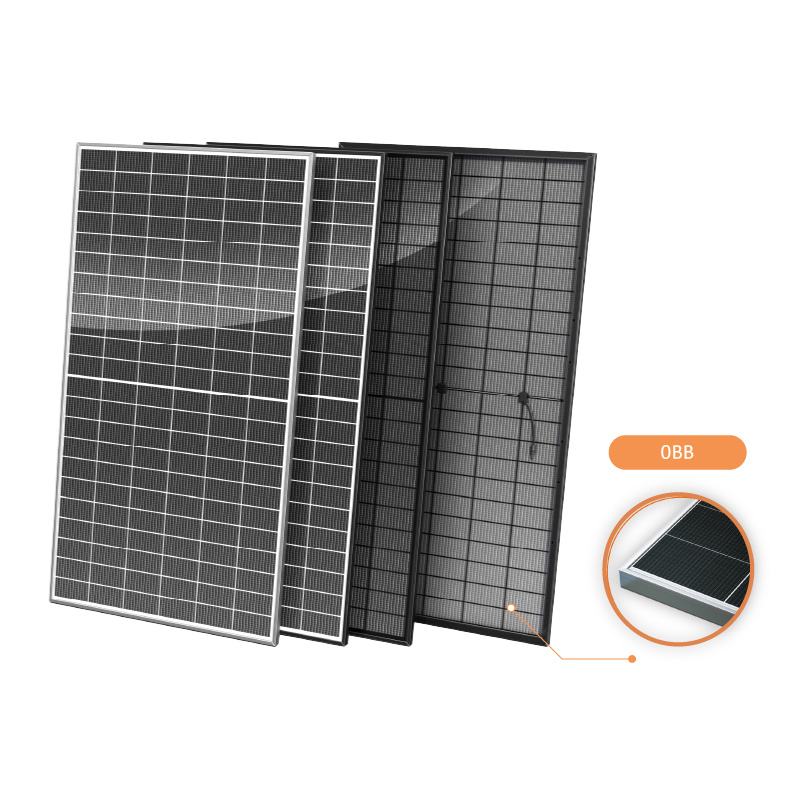

BIFACIAL HELIOSLINE MAX
G12 132 MONO CELL SOLAR PANELS
GSM-710W 715W 720W 725W 730W
GermanSolar is a specialist in customization, introducing colored glass, frames, and back-sheet material and shapes to aesthetically match your ideas with the prospective application. With innovative technology and design, GermanSolar offers high quality modules with enhanced aesthet-ic appearance for building structures and facades. By providing outstand-ing customization options, GermanSolar supports your required project needs with colored and shaped panels of your choice, and consults with you in choosing the right size, thickness, shape, and color to complement the design of your application and your building.
Features
HJT OBB Technology-Shorter current transport path, better low-light performance and higher power gen-eration
Positive power of up to +5.00 Wp
Hail test:IEC 61215-2:2021 $45mm, 30.7m/s
Withstands wind loads up to 2400 Pa /heavy snow loads up to 5400Pa
Sealing with PIB:Stronger moistance resistance, greater air impermeability to ex-tent module lifespan.
High ammonla & salt mist resistant certified and PID-free
EL tested and micro cracks inspected
15-year limited product warranty
30-year linear performance war-ranty
ISO 9001
ISO 14001
ISO 45001
ISO 26000
ISO 19600
ISO 14001
ISO 45001
ISO 26000
ISO 19600
IEC 61730-1
IEC 61730-2, IEC 61215-1,
IEC 61215-2 and IEC 61215-1-1
IEC 61730-2, IEC 61215-1,
IEC 61215-2 and IEC 61215-1-1
EN IEC 61730:
PHOTOVOLTAIC (PV) MODULE SAFETY QUALIFICATION
2014/35/EU:
THE LOW VOLTAGE DIRECTIVE
PHOTOVOLTAIC (PV) MODULE SAFETY QUALIFICATION
2014/35/EU:
THE LOW VOLTAGE DIRECTIVE
